Note: This HF LNA design is inspired by Charlie Morris ZL2CTM's prior work.

The idea that a single-transistor-preamp with 10 dB gain is more than enough for HF comes from Gajendra Kumar (VU2BGS). As a new "designer" I am often overwhelmed by the different possible design paths - so having guidance from an elmer becomes crucial.

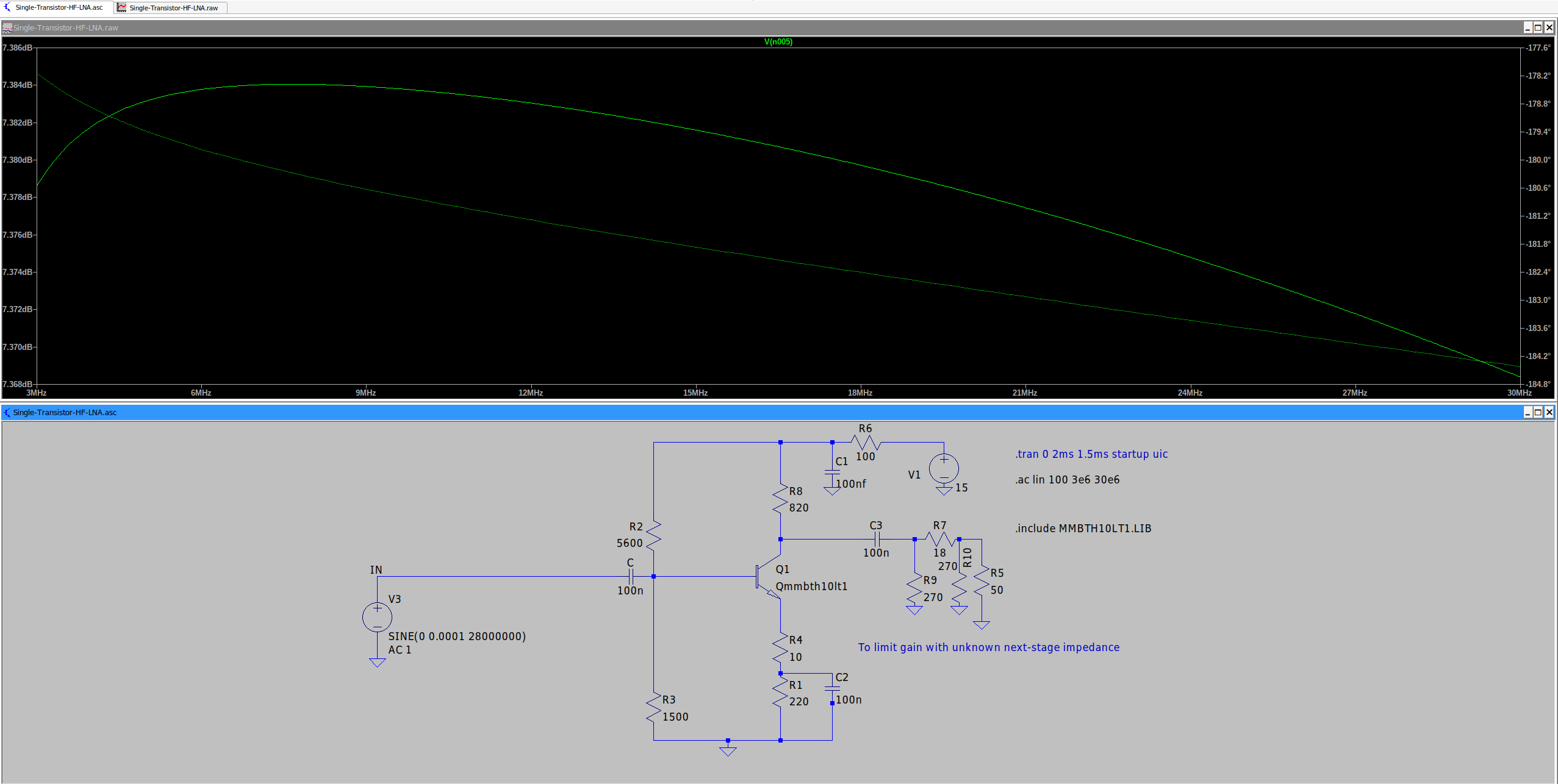

HF LNA 1

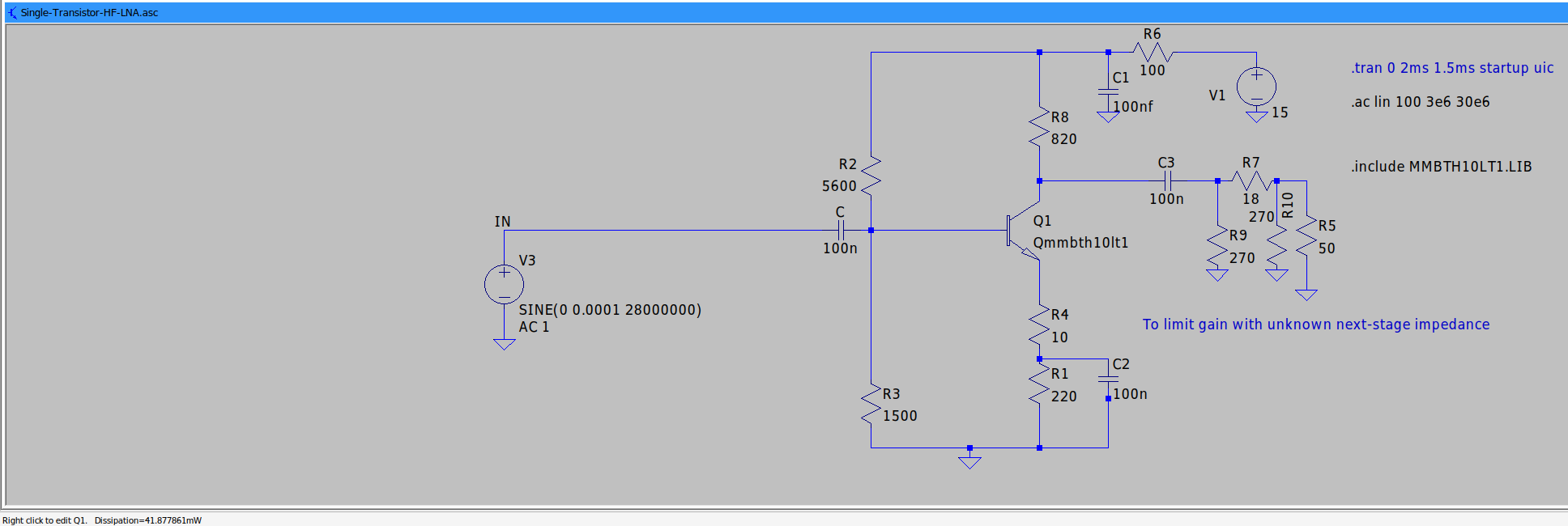

HF LNA 2

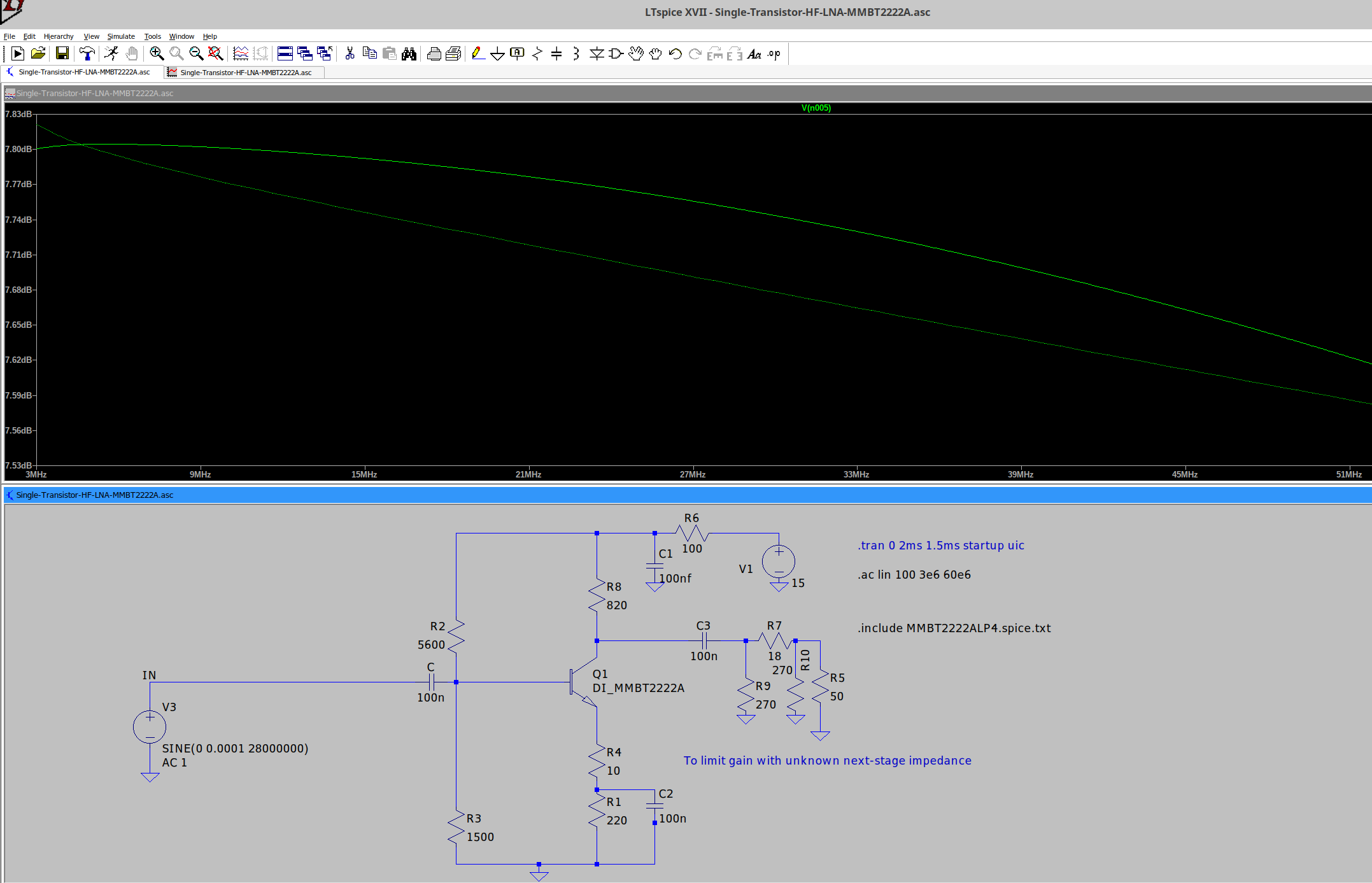

It seems even MMBT2222A should work for building a HF LNA!

HF LNA 3

It doesn't feel right to dissipate ~45mW continuously in a SOT-23 package, so we will be shifting to PZT2222A (SOT-223) or PXT2222A (SOT-89).

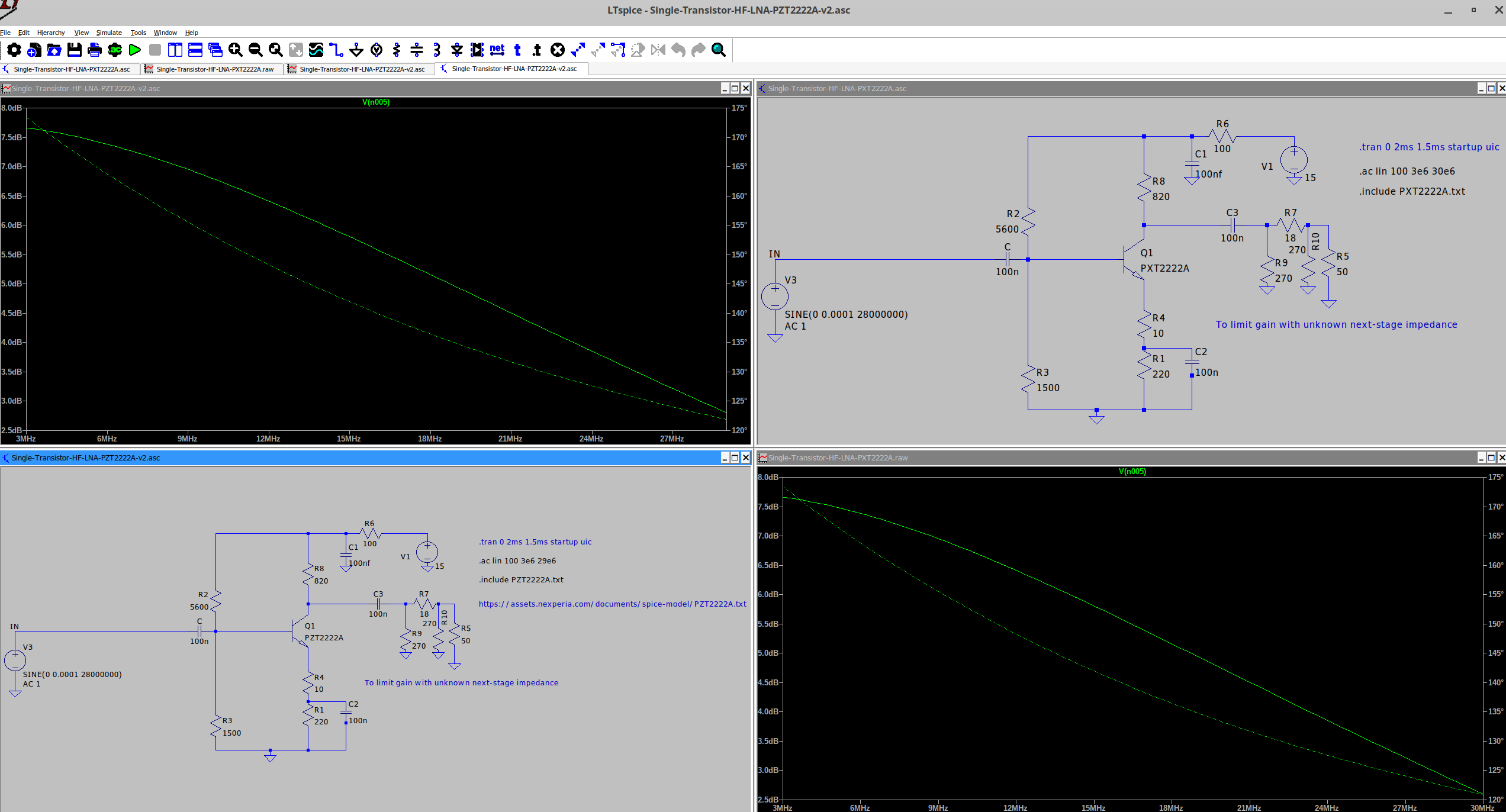

With NXP parts:

HF LNA 4

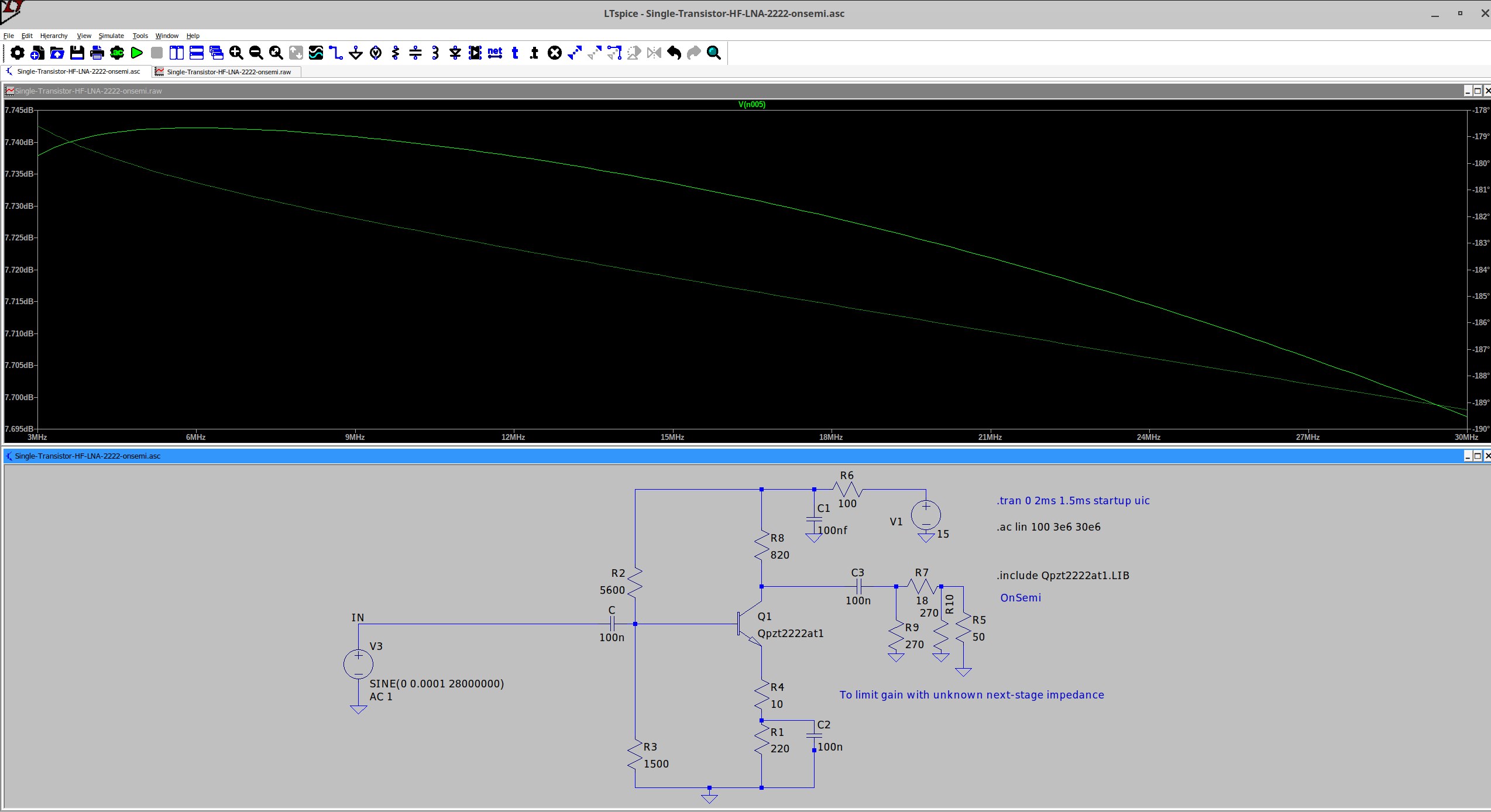

With onsemi part:

HF LNA 5

So which transistor model is more accurate? ;)

It is a pleasure to work with onsemi's .lib spice models - they are usable right away!

This LNA will be used in the RX path of the DDX Commercial series of transceivers soon!

Simulation files: https://github.com/kholia/Gain-Blocks-LTspice/tree/main/HF-LNA

Please always publish your simulation files ;)

Updates (October-2025):

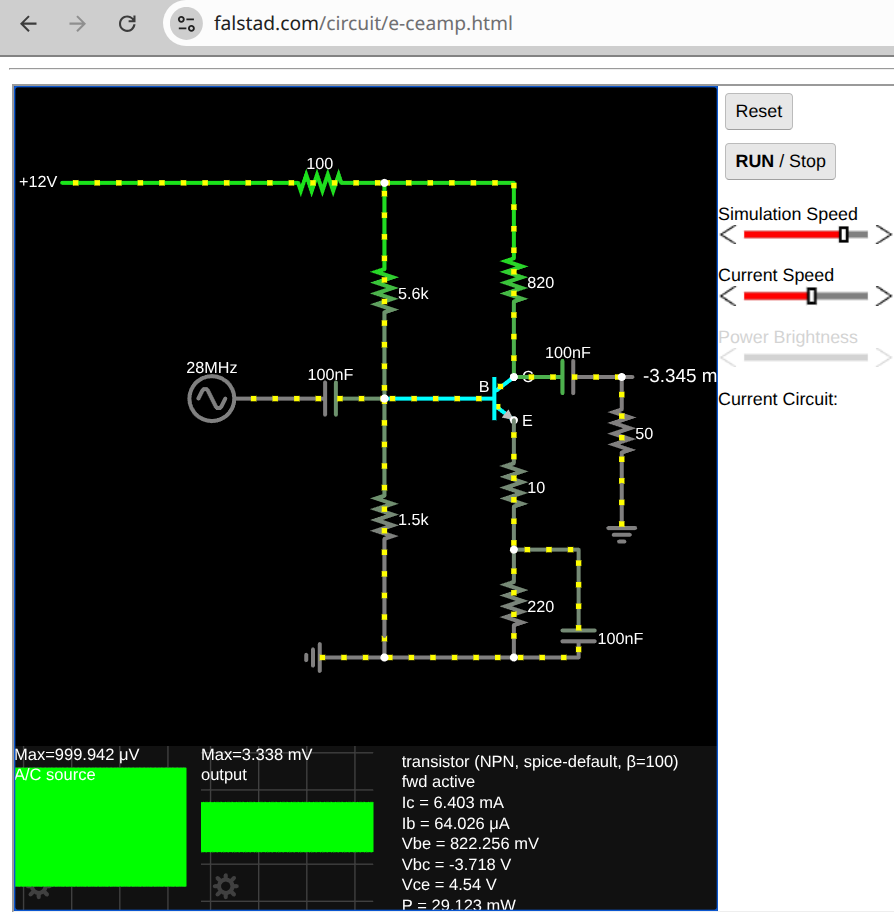

HF LNA 1

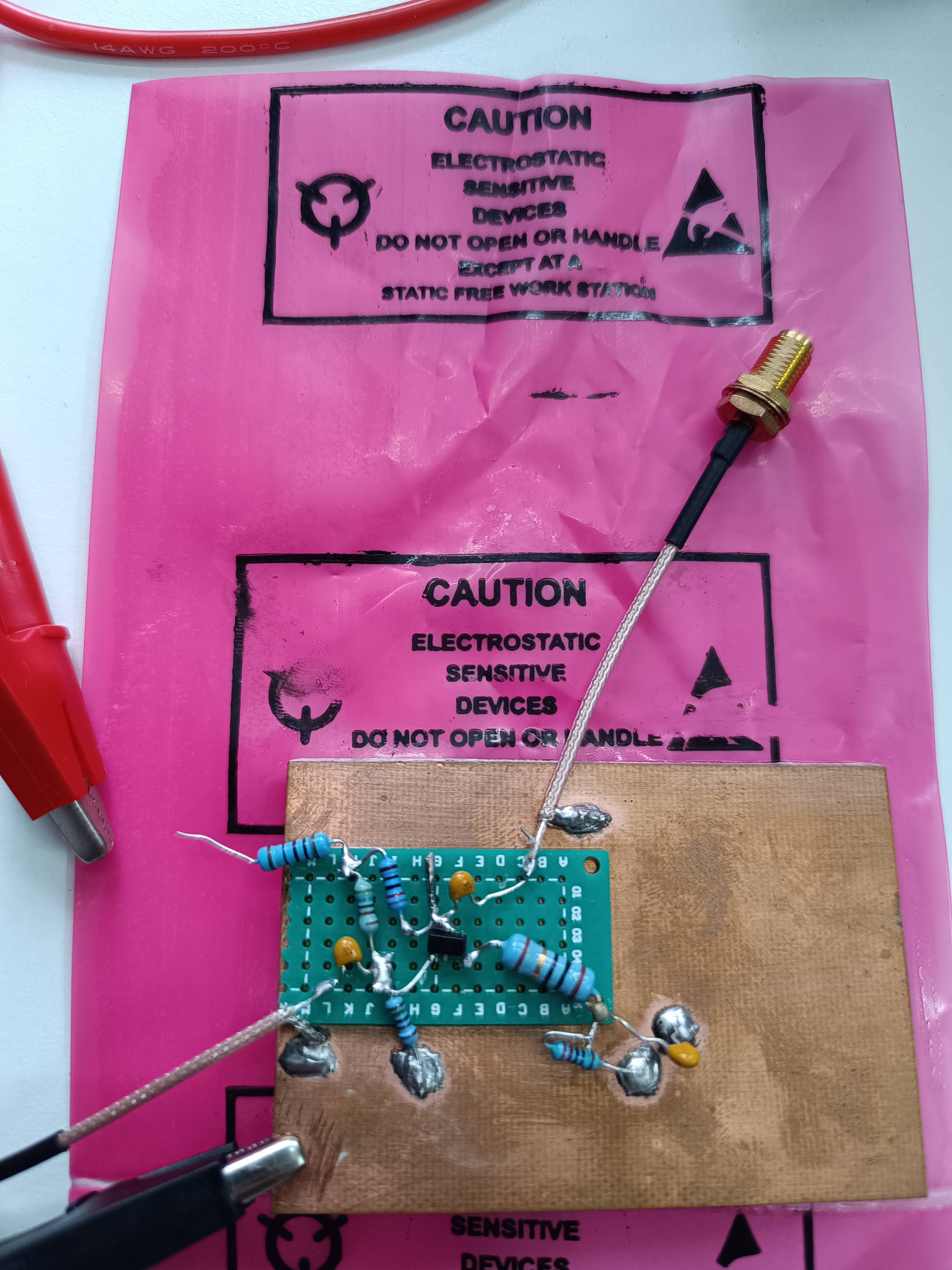

LNA Actual Picture 1

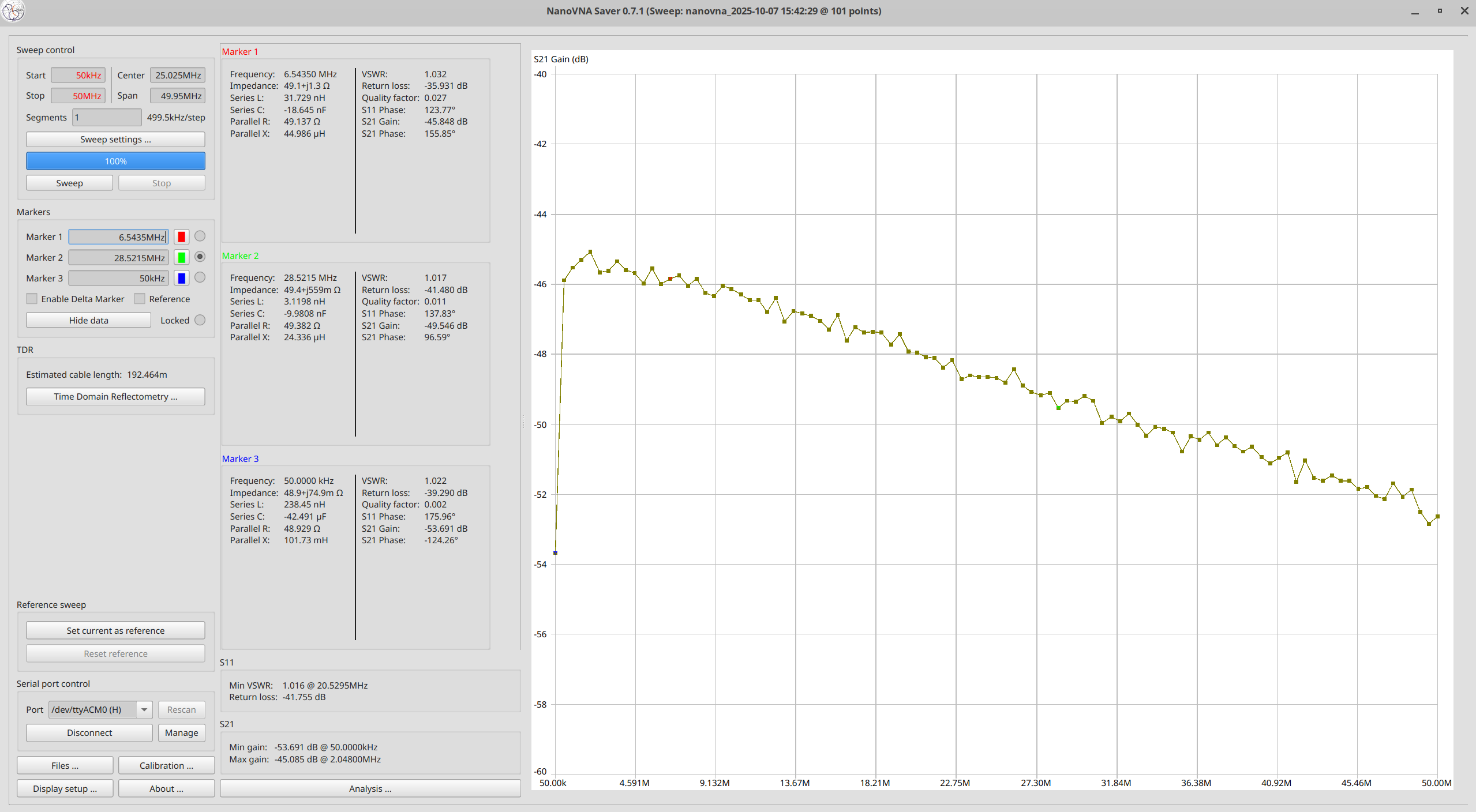

LNA Measurements 1

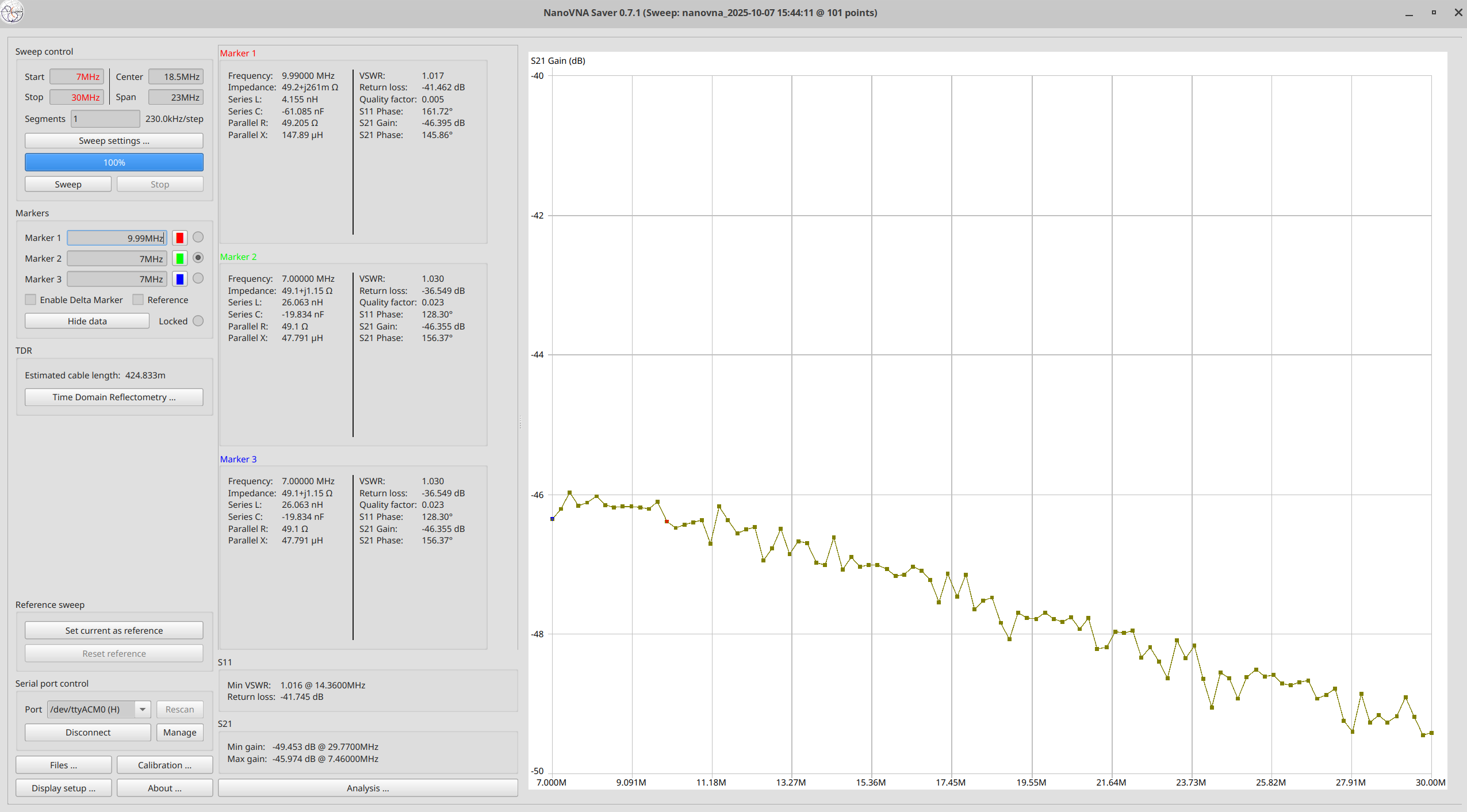

LNA Measurements 2

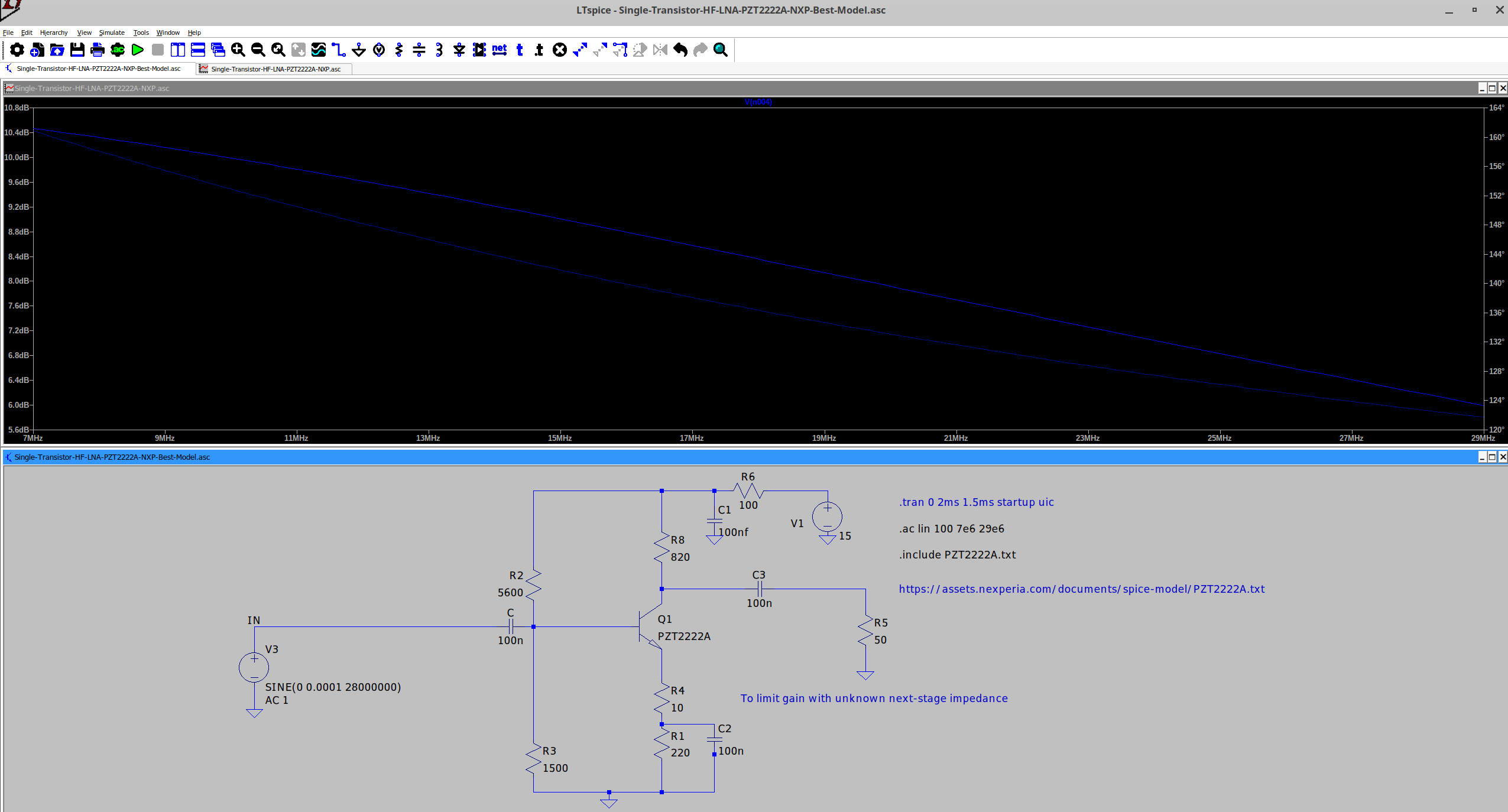

HF LNA Sim

As you can see, NXP's transistor model is pretty decent and mimics reality well!

NanoVNA setup notes:

Input ATTN: 30dB (Port 1 of NanoVNA)

Output ATTN: 33dB (Port 2 of NanoVNA)
