The https://github.com/rxt1077/wspr_spread work is pretty awesome.
It helped us debug why our TCXO-powered-WSPR beacon was pretty decent on 4m band but flaky on 2m.
Doppler spread value on 70 MHz:
... 70.0924994 VU3CER MK68 23 0 0.29 1 1 0 1 44 1 810 0.517

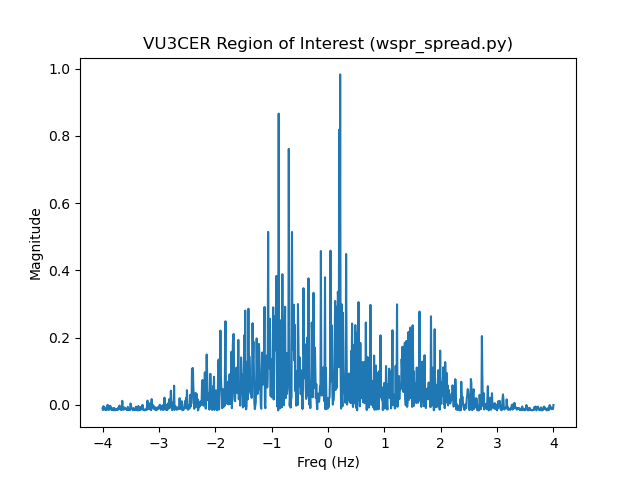

Now see the problem on 144 MHz:
... 144.4905417 VU3CER MK68 23 -3 0.12 1 1 0 1 39 1 810 0.865
Pretty all over the place but we are operating on 2m - so probably expected for a 25 MHz TCXO based system!

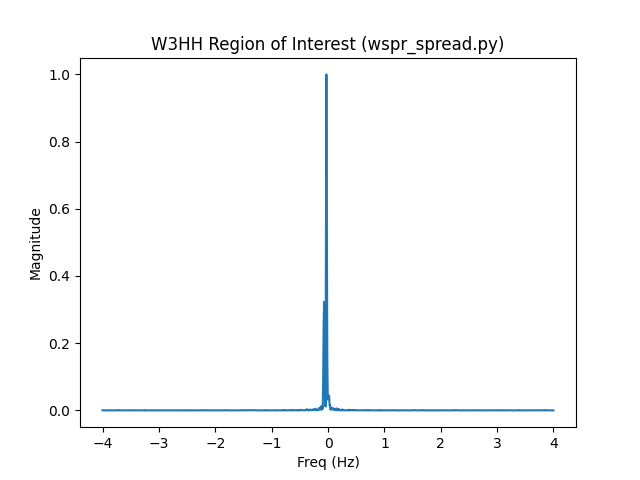

A better WSPR generator would produce something like this (https://github.com/rxt1077/dissecting_wsprd sample):
We will get there at a low cost eventually ;)
Update: Based on https://www.qrz.com/db/W3HH it seems that this sample recording is from 30m or 10m band. This explains the "low / tight doppler spread" value for W3HH!
